Adjustable chamfering CNC cutter

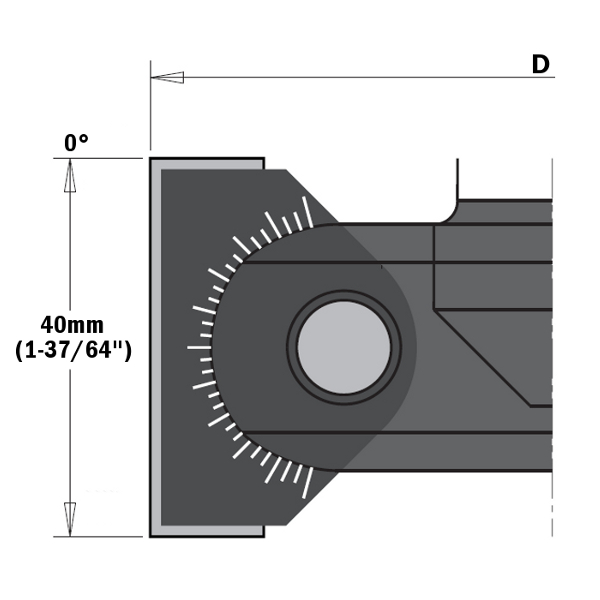

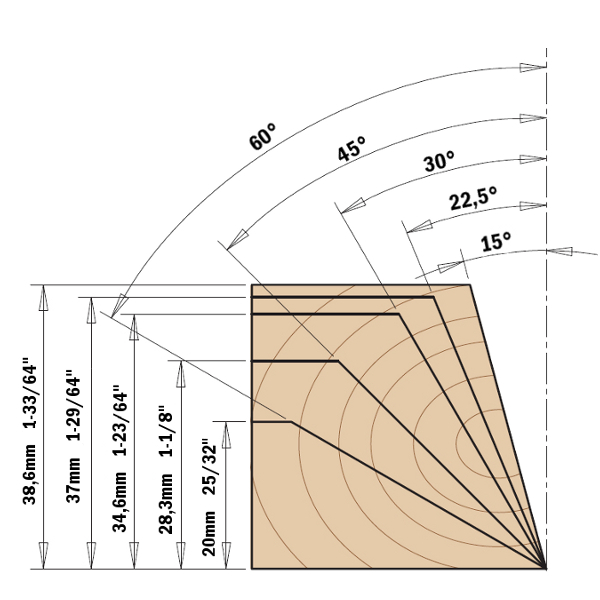

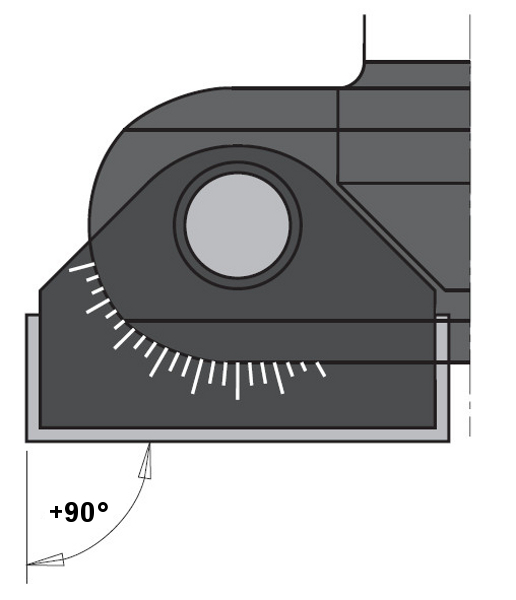

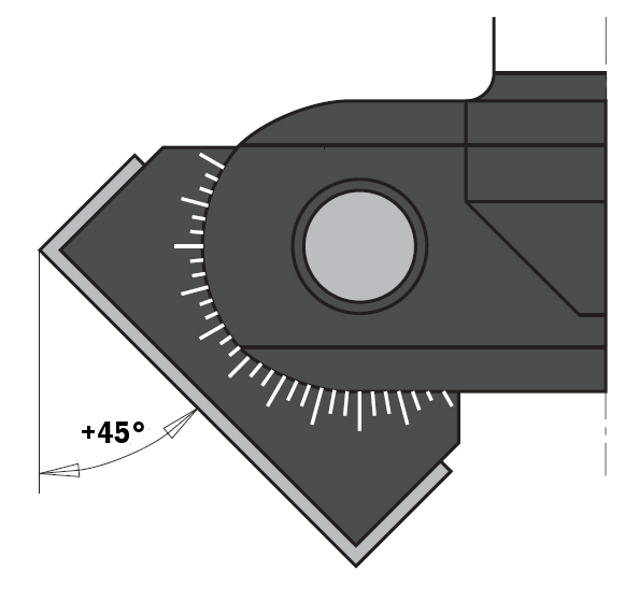

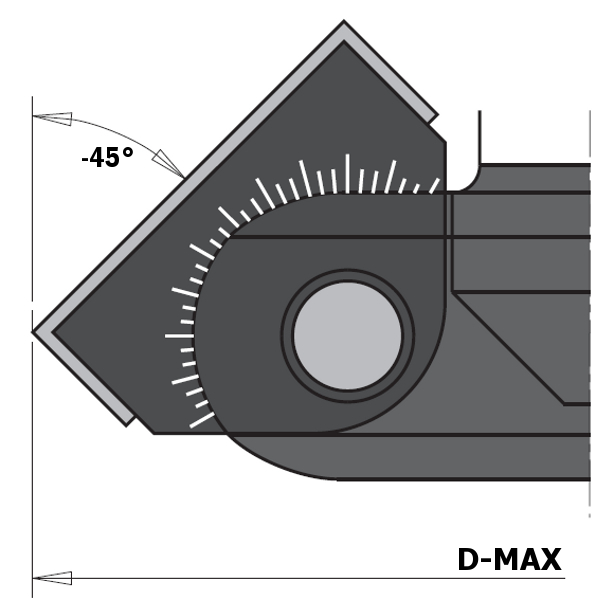

Tool body in steel, two TC reversible knives in swiveling blade carriers. Cutting on periphery and both sides. Swiveling range towards top 0-45?, toward bottom 0-90?, infinitely variable adjustment according to precise scale. With positive stops at 7,5? through adjustment aide. No displacement of adjusted beveling angle when replacing blades. Right rotation. Inclination: Min. Max. -45? +90?

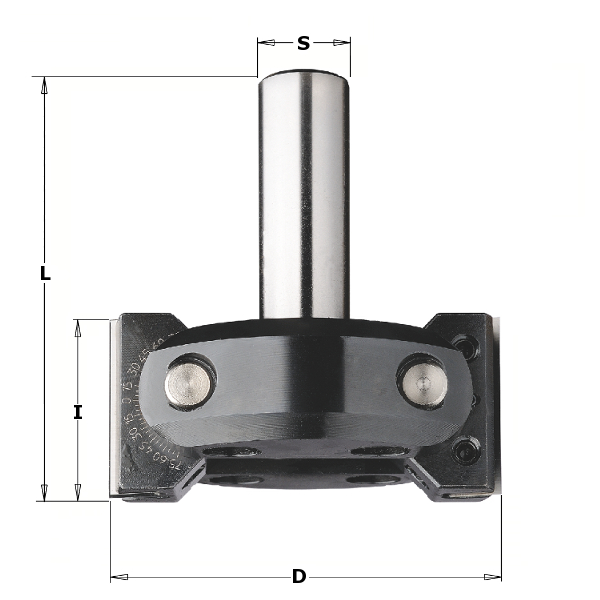

D DX/SX Z Material I L S Code Ava. Price Quantity
85 mm. DX  HW  40 mm. 92 mm. 20 mm. 663.201.11 product not available
€ 377,00
VAT inc. € 463,71

Spare parts

Product
663.201.11 990.023.00
