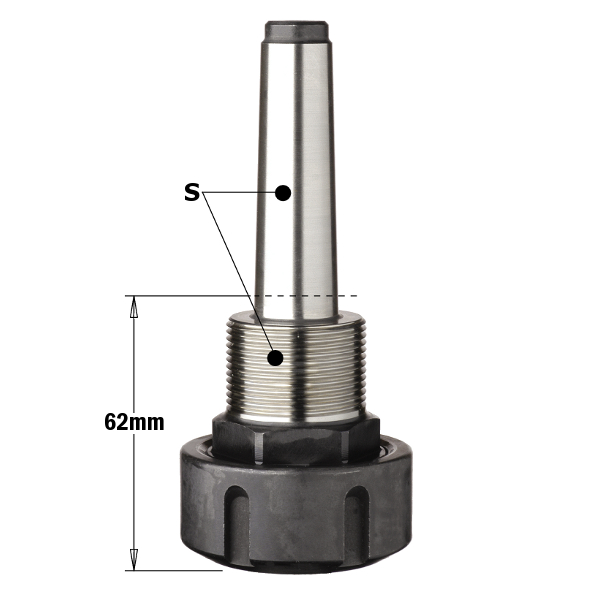

Chucks for "ER32" precision collets attack MK2/MK3

The ideal accessories for machining centres, point-to-point machines and CNC routers

  • Extreme precision and reliability
  • Perfect tool centering
  • Defect-free rotation
  • Made from extremely high resistant steel
  • Precision grinding on all jointed parts
  • Extreme high rotation performance >= 15 HP -  20.000 RPM
  • For very efficient sizing on extreme unprecedented high feed speed
  • Excellent finishing quality on the workpiece and longer tool life
  • Sturdy design with reduced height to increase the work space between the machine and the
  • iece
  • Safe and fast tool setup
  • Interchangeable collet clamps with radial grooves for secure parallel tool clamping
  • Wide clamping tolerance (-0.7mm)
  • Right or left-hand rotation chucks with self clamping threads
  • Clamping nut with Woodruff radial grooves for c-spanners.
  • Practical withdrawal sleeves with double differential threads for the chuck spindle
  • Central hexagonal low profile for easy tool clamping through a c-spanner.
  • Designed and tested in collaboration with the most renowned machining and CNC router
  • Instruction centres
  • Delivered in smart professional packaging.
DX/SX S Code Ava. Price Quantity
DX  MK2/M30x1,5 mm. 183.000.01 product available
€ 106,18
VAT inc. € 130,60
SX  MK2/M30x1,5 mm. 183.000.02 product not available
€ 134,06
VAT inc. € 164,90
DX  MK3/M30x1,5 mm. 183.100.01 product available
€ 157,30
VAT inc. € 193,48

Spare parts

Product
183.000.01 992.183.01
183.000.02 992.183.02
183.100.01 992.183.01
