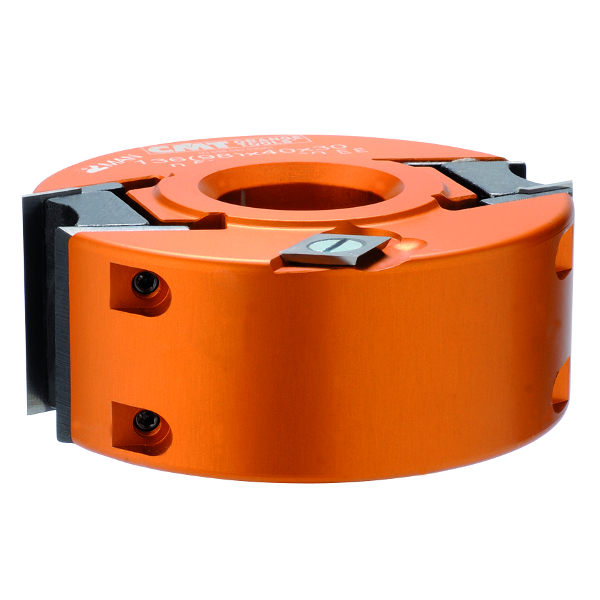

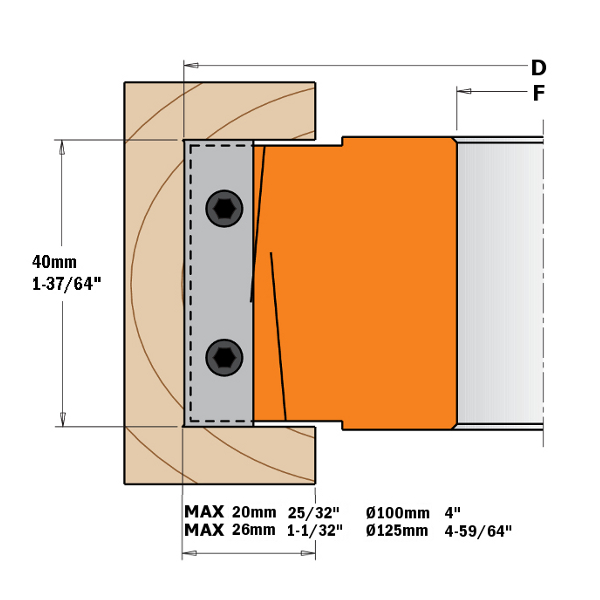

Cutter heads for rabbeting and 40mm (1-37/64") profile knives

TECHNICAL FEATURES:

  • Hard aluminium alloy body with high resistance to tensile and yield stress.
  • 2 universal HWM straight knives (40x12x1,5mm -Z2).
  • 2 universal HWM scoring knives (14x14x2mm - V2).Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.

Supplied in a solid plastic box.

These cutter heads have been designed for:

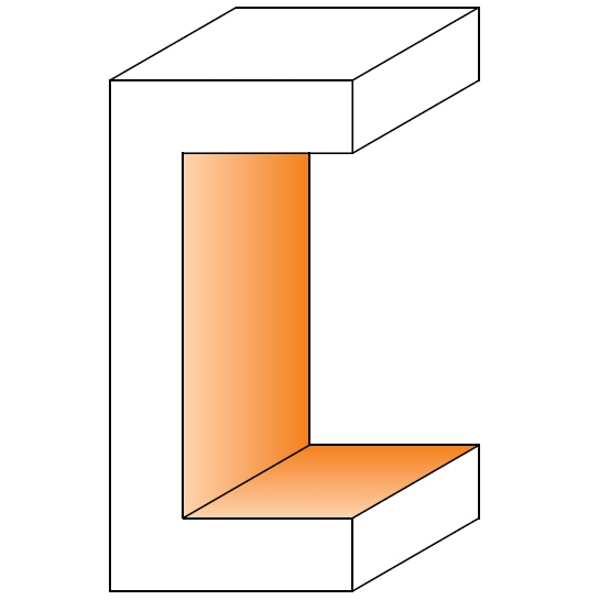

  • Rabbeting from top and from bottom.
  • Jointing.
  • Grooving.


To be used on spindle moulder machines, double-end tenoners and edging machines.

Perfect on all materials, but better results are achieved on chipboard, MDF, wood composites, plastic materials and laminates.

D F Z Material Descr. I Code Ava. Price Quantity
100 mm. 31,75 mm. 2+2  HW  Testa portacoltelli per battute e profili da 40mm  40 mm. 694.020.31 product available
€ 158,25
VAT inc. € 194,65
125 mm. 35 mm. 2+2  HW  Testa portacoltelli per battute e profili da 40mm  40 mm. 694.020.35 product available
€ 176,70
VAT inc. € 217,34
125 mm. 40 mm. 2+2  HW  Testa portacoltelli per battute e profili da 40mm  40 mm. 694.020.40 product available
€ 176,70
VAT inc. € 217,34
125 mm. 50 mm. 2+2  HW  Testa portacoltelli per battute e profili da 40mm  40 mm. 694.020.50 product available
€ 176,70
VAT inc. € 217,34

Spare parts

Product
694.020.31 691.190 790.140.00 790.400.00 991.073.00
694.020.35 691.190 790.140.00 790.400.00 991.073.00
694.020.40 691.190 790.140.00 790.400.00 991.073.00
694.020.50 691.190 790.140.00 790.400.00 991.073.00
