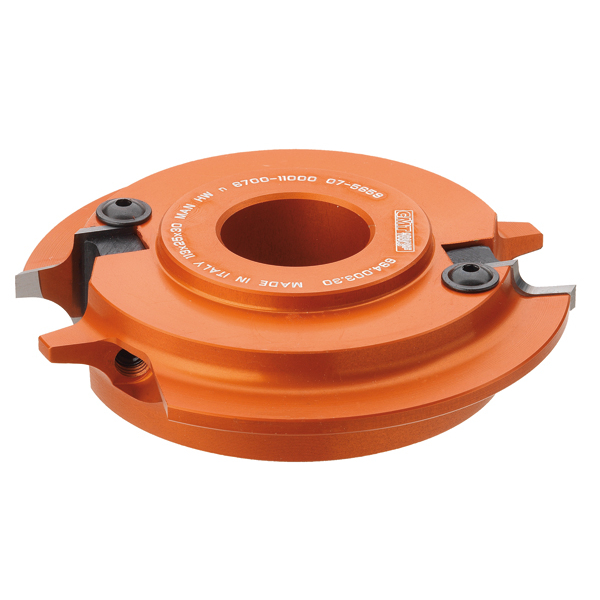

Multiradius roundover cutter heads 694.003

TECHNICAL DETAILS:

  • Hard aluminium alloy body with high resistance to tensile and yield stress.

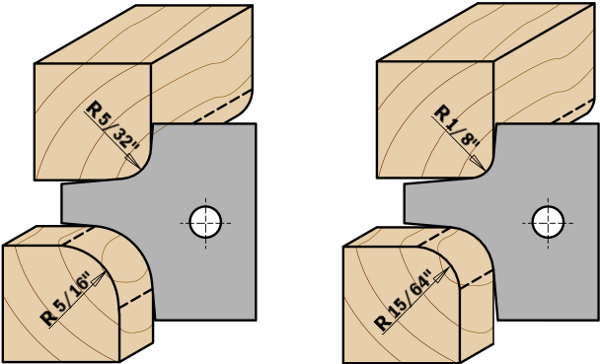

  • 2 HWM knives with radius 5mm (13/64") - 10mm (25/64") ? (25x24,8x2mm - Z2).
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.



Supplied in a solid plastic box.

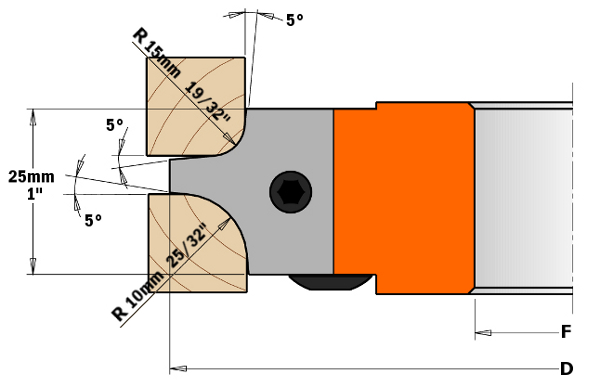

D F Z Material Descr. I Code Ava. Price Quantity
113 mm. 30 mm. HW  Corkscrew head with concave multiplier  25 mm. 694.003.30 product not available
€ 124,54
VAT inc. € 153,18
113 mm. 31,75 mm. HW  Corkscrew head with concave multiplier  25 mm. 694.003.31 product available
€ 128,31
VAT inc. € 157,82
113 mm. 35 mm. HW  Corkscrew head with concave multiplier  25 mm. 694.003.35 product available
€ 124,54
VAT inc. € 153,18
128 mm. 40 mm. HW  Corkscrew head with concave multiplier  25 mm. 694.003.40 product available
€ 133,90
VAT inc. € 164,70
128 mm. 50 mm. HW  Corkscrew head with concave multiplier  25 mm. 694.003.50 product available
€ 133,90
VAT inc. € 164,70

Spare parts

Product
694.003.30 695.003.04 695.003.05
694.003.31 695.003.04 695.003.05
694.003.35 695.003.03 695.003.05
694.003.40 695.003.04 695.003.05
694.003.50 695.003.03 695.003.05
