2 flute dowel drills for through holes

TECHNICAL DETAILS:

Super-strength steel.
Spiral portion coated with orange or black P.T.F.E.

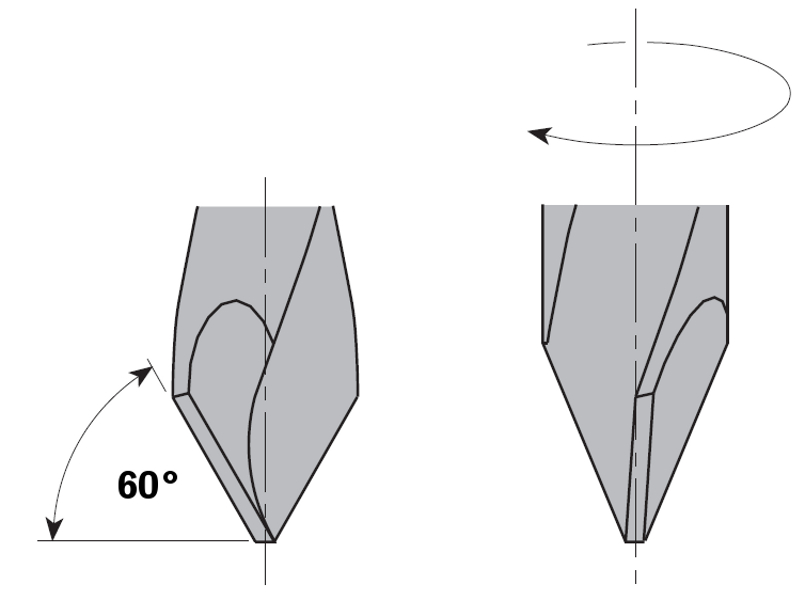

HW head with precision balanced centre point.
2 precision ground cutting edges (Z2).
2 spiral flutes.
Parallel shank with driving flat and length adjusting screw.

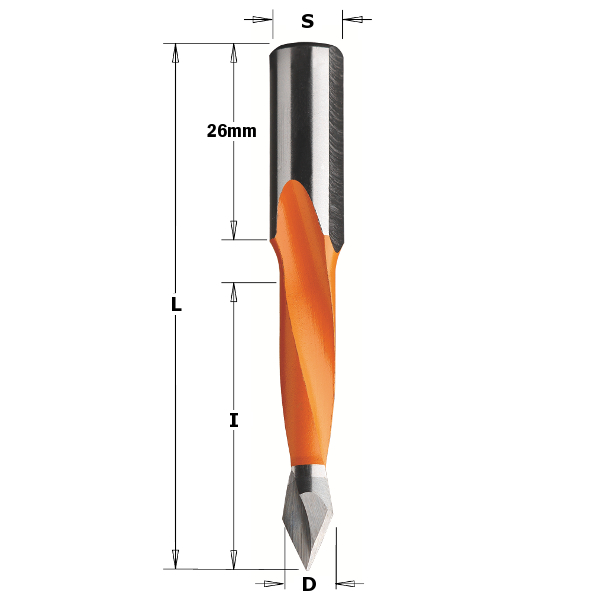

D	DX/SX	Material	I	L	S	Code	Price
4 mm.	DX	HW	30 mm.	70 mm.	10x26 mm.	314.040.11	€ 22,30 VAT inc. € 27,42
4 mm.	SX	HW	30 mm.	70 mm.	10x26 mm.	314.040.12	€ 22,30 VAT inc. € 27,42
4,76 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.047.11	€ 22,39 VAT inc. € 27,54
4,76 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.047.12	€ 22,39 VAT inc. € 27,54
5 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.050.11	€ 18,98 VAT inc. € 23,34
5 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.050.12	€ 18,98 VAT inc. € 23,34
5,55 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.055.11	€ 22,39 VAT inc. € 27,54
5,55 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.055.12	€ 22,39 VAT inc. € 27,54
6 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.060.11	€ 20,11 VAT inc. € 24,74
6 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.060.12	€ 20,11 VAT inc. € 24,74
6,35 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.064.11	€ 22,39 VAT inc. € 27,54
6,35 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.064.12	€ 22,39 VAT inc. € 27,54
7 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.070.11	€ 21,82 VAT inc. € 26,84
7 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.070.12	€ 21,82 VAT inc. € 26,84
8 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.080.11	€ 20,68 VAT inc. € 25,44
8 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.080.12	€ 20,68 VAT inc. € 25,44
9 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.090.11	€ 22,77 VAT inc. € 28,01
9 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.090.12	€ 22,77 VAT inc. € 28,01
9,52 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.095.11	€ 26,09 VAT inc. € 32,09
9,52 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.095.12	€ 26,09 VAT inc. € 32,09
10 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.100.11	€ 22,30 VAT inc. € 27,42
10 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.100.12	€ 22,30 VAT inc. € 27,42
12 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.120.11	€ 25,71 VAT inc. € 31,62
12 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.120.12	€ 25,71 VAT inc. € 31,62
12,7 mm.	DX	HW	35 mm.	70 mm.	10x26 mm.	314.127.11	€ 46,49 VAT inc. € 57,18
12,7 mm.	SX	HW	35 mm.	70 mm.	10x26 mm.	314.127.12	€ 46,49 VAT inc. € 57,18
