4 flute dowel drills

TECHNICAL DETAILS:

Super-strength steel.
Cutter portion coated with black or orange P.T.F.E.

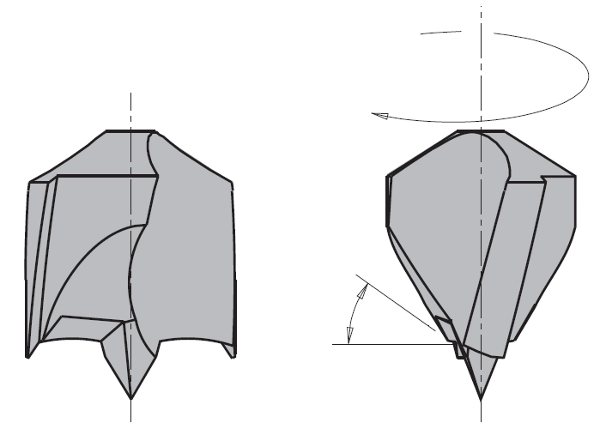

HW head with precision balanced centre point.
2 HW precision ground cutting edges (Z2).
2 negatively ground spurs (V2).
4 spiral flutes.
Parallel shank with driving flat and length adjusting screw.

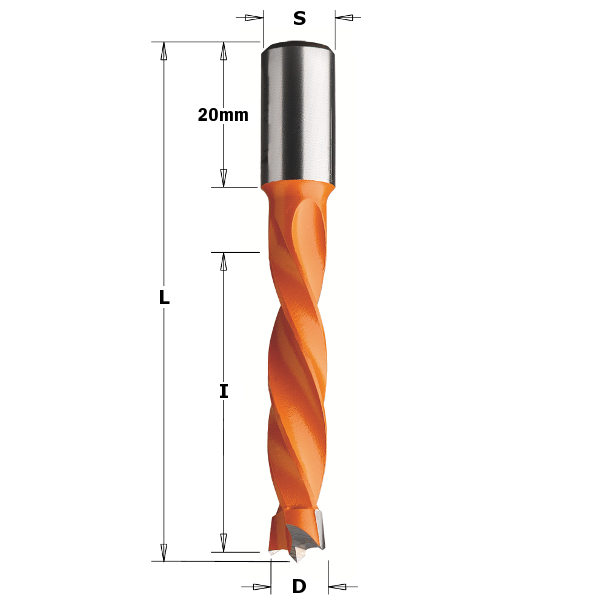

D	DX/SX	Material	I	L	S	Code	Price
4 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.040.11	€ 17,65 VAT inc. € 21,71
4 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.040.12	€ 17,65 VAT inc. € 21,71
5 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.050.11	€ 14,42 VAT inc. € 17,74
5 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.050.12	€ 14,42 VAT inc. € 17,74
6 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.060.11	€ 15,18 VAT inc. € 18,67
6 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.060.12	€ 15,18 VAT inc. € 18,67
6,35 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.064.11	€ 17,93 VAT inc. € 22,06
6,35 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.064.12	€ 17,93 VAT inc. € 22,06
7 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.070.11	€ 16,13 VAT inc. € 19,84
7 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.070.12	€ 16,13 VAT inc. € 19,84
7,5 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.075.11	€ 19,45 VAT inc. € 23,92
7,5 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.075.12	€ 19,45 VAT inc. € 23,92
8 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.080.11	€ 15,65 VAT inc. € 19,25
8 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.080.12	€ 15,65 VAT inc. € 19,25
9 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.090.11	€ 17,93 VAT inc. € 22,06
9 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.090.12	€ 17,93 VAT inc. € 22,06
9,52 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.095.11	€ 20,02 VAT inc. € 24,62
9,52 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.095.12	€ 20,02 VAT inc. € 24,62
10 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.100.11	€ 17,93 VAT inc. € 22,06
10 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.100.12	€ 17,93 VAT inc. € 22,06
11 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.110.11	€ 19,45 VAT inc. € 23,92
11 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.110.12	€ 19,45 VAT inc. € 23,92
12 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.120.11	€ 19,45 VAT inc. € 23,92
12 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.120.12	€ 19,45 VAT inc. € 23,92
12,7 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.127.11	€ 25,05 VAT inc. € 30,81
12,7 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.127.12	€ 25,05 VAT inc. € 30,81
13 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.130.11	€ 26,00 VAT inc. € 31,97
13 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.130.12	€ 26,00 VAT inc. € 31,97
14 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.140.11	€ 26,75 VAT inc. € 32,91
14 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.140.12	€ 26,75 VAT inc. € 32,91
15 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.150.11	€ 29,89 VAT inc. € 36,76
15 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.150.12	€ 29,89 VAT inc. € 36,76
16 mm.	DX	HW	43 mm.	70 mm.	10x20 mm.	309.160.11	€ 31,40 VAT inc. € 38,63
16 mm.	SX	HW	43 mm.	70 mm.	10x20 mm.	309.160.12	€ 31,40 VAT inc. € 38,63
