Cutter heads with limiters

TECHNICAL DETAILS:

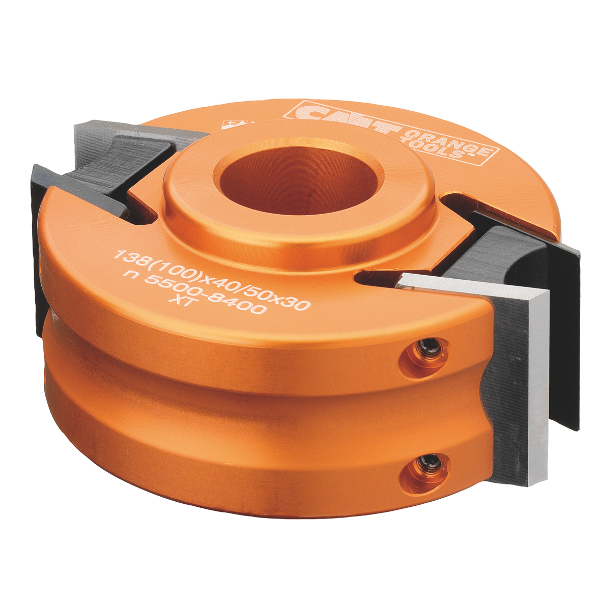

Hard aluminium or steel alloy cutter head without limiters, highly resistant to tensile and yield stress.
Pair of universal straight knives.
Tools for manual feed (MAN).
Pins for the automatic positioning of the knives.

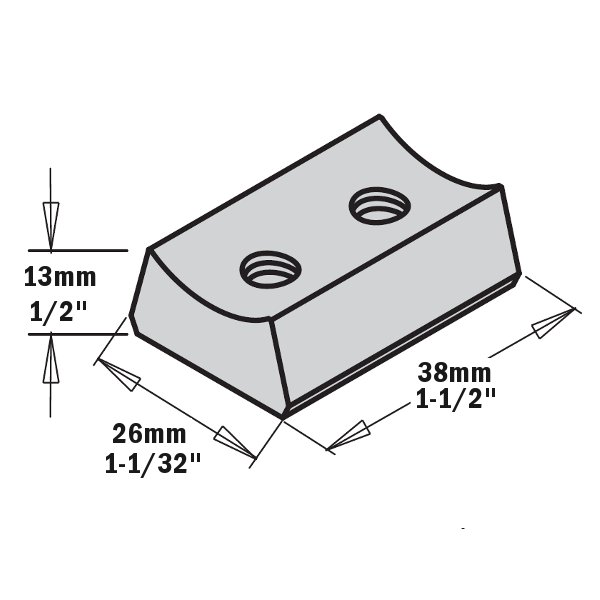

Possibility to use knives with a height of 40mm (1-37/64") or 50mm (1-31/32") (order no. 690) and limiters (order no. 691). Supplied in a solid plastic box to contain up to 12 couples of knives.

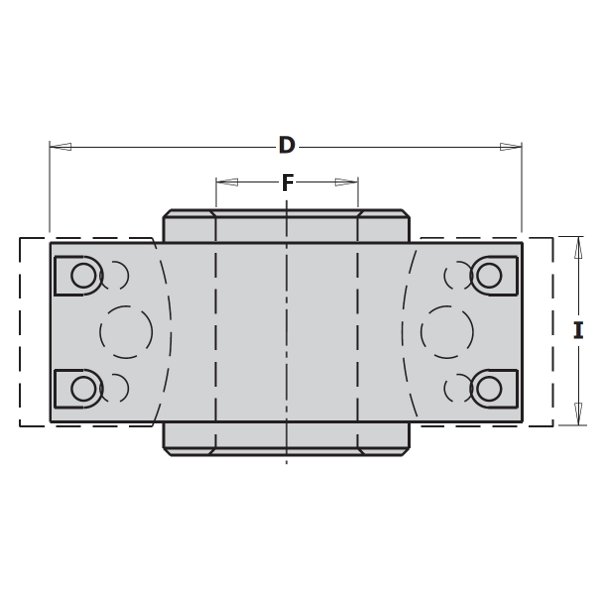

D	F	Z	Material	Descr.	I	Code	Ava.	Price	Quantity
78 mm.	30 mm.	2	SP	Corpo in acciaio	40 mm.	693.078.30		€ 132,45 VAT inc. € 162,91
100 mm.	30 mm.	2	SP	Corpo in alluminio	40-50 mm.	693.100.30		€ 166,00 VAT inc. € 204,18
100 mm.	31,75 mm.	2	SP	Corpo in alluminio	40-50 mm.	693.100.31		€ 166,00 VAT inc. € 204,18
100 mm.	35 mm.	2	SP	Corpo in alluminio	40-50 mm.	693.100.35		€ 166,00 VAT inc. € 204,18
100 mm.	30 mm.	2	SP	Corpo in acciaio	40-50 mm.	693.101.30		€ 127,84 VAT inc. € 157,24
100 mm.	35 mm.	2	SP	Corpo in acciaio	40-50 mm.	693.101.35		€ 127,84 VAT inc. € 157,24
120 mm.	50 mm.	2	SP	Corpo in alluminio	40-50 mm.	693.120.50		€ 166,00 VAT inc. € 204,18
120 mm.	50 mm.	2	SP	Corpo in acciaio	40-50 mm.	693.121.50		€ 135,95 VAT inc. € 167,21

Spare parts

Product
693.078.30
693.100.30
693.100.31
693.100.35
693.101.30
693.101.35
693.120.50
693.121.50
