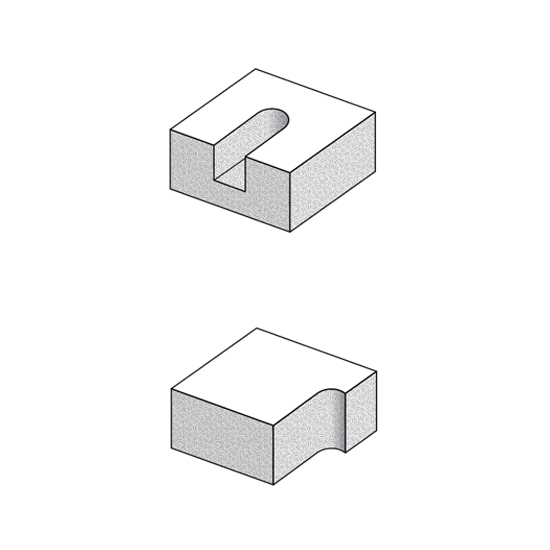

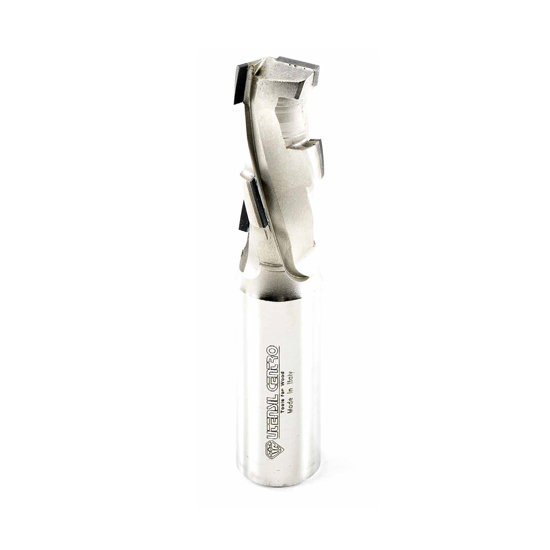

Diamond polycrystalline router bits for routing, ideal for panels made on raw and coated chipboard, plywood, etc.
Axial construction.
It can be resharpened 2/3 times.
Axial Angle: 15-20°
Body: Acciaio Steel
PCD: H=2.5mm
Divisions: 1+1
MAX RPM: 24,000
Left Hand & Diamond Plunge tip available on request

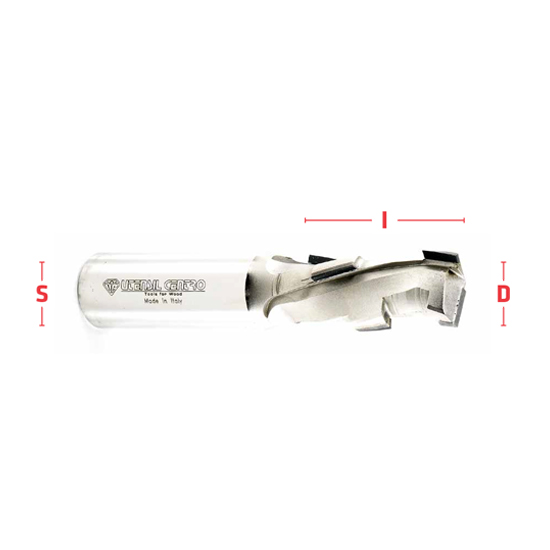

D= Diameter
Z= Teeth
I= Cutting Length
S= Shank Diameter
L= Overall Size
| D | Z | I | L | S | Code | Ava. | Price | Quantity |
|---|---|---|---|---|---|---|---|---|
| 8 mm. | 3+1 HM | 20 mm. | 75 mm. | 10 mm. | 800.0825.75/A12 . |
|
€ 66,34
VAT inc. € 81,60
|
|
| 8 mm. | 3+1 HM | 25 mm. | 75 mm. | 8 mm. | 800.0825.75 |
|
€ 73,32
VAT inc. € 90,18
|
|
| 8 mm. | 3+1 HM | 25 mm. | 75 mm. | 12 mm. | 800.0825.75-A12 |
|
€ 73,32
VAT inc. € 90,18
|
|
| 10 mm. | 3+1 HM | 25 mm. | 72 mm. | 12 mm. | 800.1025.75 |
|
€ 60,23
VAT inc. € 74,08
|
|
| 10 mm. | 3+1 HM | 25 mm. | 72 mm. | 10 mm. | 800.1025.75-A10 |
|
€ 73,32
VAT inc. € 90,18
|
|
| 12 mm. | 3+1 HM | 25 mm. | 75 mm. | 12 mm. | 800.1225.75 |
|
€ 60,23
VAT inc. € 74,08
|
|
| 12 mm. | 4+1 HM | 35 mm. | 85 mm. | 12 mm. | 800.1235.75 |
|
€ 80,30
VAT inc. € 98,77
|
|
| 12.7 mm. | 3+1 HM | 25 mm. | 85 mm. | 12.7 mm. | 800.12725.75 |
|
€ 73,32
VAT inc. € 90,18
|
|
| 12.7 mm. | 5+1 HM | 45 mm. | 105 mm. | 12.7 mm. | 800.12745.75 |
|
€ 122,20
VAT inc. € 150,30
|
|
| 15.87 mm. | 4+1 HM | 35 mm. | 93 mm. | 15.87 mm. | 800.1535.75 |
|
€ 97,77
VAT inc. € 120,25
|
|
| 15.87 mm. | 5+1 HM | 45 mm. | 105 mm. | 15.87 mm. | 800.1545.75 |
|
€ 122,20
VAT inc. € 150,30
|
|
| 16 mm. | 3+1 HM | 25 mm. | 85 mm. | 16 mm. | 800.1625.75 |
|
€ 60,23
VAT inc. € 74,08
|
|
| 16 mm. | 4+1 HM | 35 mm. | 93 mm. | 16 mm. | 800.1635.75 |
|
€ 80,30
VAT inc. € 98,77
|
|
| 16 mm. | 5+1 HM | 45 mm. | 105 mm. | 16 mm. | 800.1645.75 |
|
€ 100,38
VAT inc. € 123,46
|
|
| 18 mm. | 3+1 HM | 25 mm. | 85 mm. | 20 mm. | 800.1825.75 |
|
€ 60,23
VAT inc. € 74,08
|
|
| 18 mm. | 4+1 HM | 35 mm. | 93 mm. | 20 mm. | 800.1835.75 |
|
€ 80,30
VAT inc. € 98,77
|
|
| 18 mm. | 5+1 HM | 45 mm. | 105 mm. | 20 mm. | 800.1845.75 |
|
€ 100,38
VAT inc. € 123,46
|
|
| 18 mm. | 6+1 HM | 55 mm. | 115 mm. | 20 mm. | 800.1855.75 |
|
€ 120,45
VAT inc. € 148,15
|
|
| 19.05 mm. | 5+1 HM | 45 mm. | 105 mm. | 19.05 mm. | 800.1945.75 |
|
€ 120,45
VAT inc. € 148,15
|
|
| 20 mm. | 3+1 HM | 25 mm. | 85 mm. | 20 mm. | 800.2025.75 |
|
€ 60,23
VAT inc. € 74,08
|
|
| 20 mm. | 4+1 HM | 35 mm. | 93 mm. | 20 mm. | 800.2035.75 |
|
€ 80,30
VAT inc. € 98,77
|
|
| 20 mm. | 5+1 HM | 45 mm. | 105 mm. | 20 mm. | 800.2045.75 |
|
€ 100,38
VAT inc. € 123,46
|
|
| 20 mm. | 6+1 HM | 55 mm. | 115 mm. | 20 mm. | 800.2055.75 |
|
€ 120,45
VAT inc. € 148,15
|
|
| 20 mm. | 7+1 HM | 65 mm. | 123 mm. | 20 mm. | 800.2065.75 |
|
€ 140,53
VAT inc. € 172,85
|
|
| 20 mm. | 8+1 HM | 72 mm. | 128 mm. | 20 mm. | 800.2072.75 |
|
€ 160,60
VAT inc. € 197,54
|
|
| 25 mm. | 3+1 HM | 25 mm. | 90 mm. | 25 mm. | 800.2525.75 |
|
€ 62,85
VAT inc. € 77,31
|
|
| 25 mm. | 4+1 HM | 35 mm. | 100 mm. | 25 mm. | 800.2535.75 |
|
€ 83,79
VAT inc. € 103,06
|
|
| 25 mm. | 5+1 HM | 45 mm. | 110 mm. | 25 mm. | 800.2545.75 |
|
€ 104,74
VAT inc. € 128,83
|
|
| 25 mm. | 6+1 HM | 55 mm. | 120 mm. | 25 mm. | 800.2555.75 |
|
€ 125,69
VAT inc. € 154,59
|
|
| 25 mm. | 7+1 HM | 65 mm. | 130 mm. | 25 mm. | 800.2565.75 |
|
€ 125,69
VAT inc. € 154,59
|
|
| 25 mm. | 8+1 HM | 72 mm. | 135 mm. | 25 mm. | 800.2572.75 |
|
€ 167,60
VAT inc. € 206,14
|
