Diamond router cutters with shear angle

These professional cutters are to be used on all CNC pantographs for making joints, beats, grooves of melamine, laminates, MDF, HPL and veneer and melamine panels .

TECHNICAL DETAILS:

Super strength steel
DP cutting edge
HW plunging tip for diagonal plunge-cutting (Z-axis tool entrance)
Resharpenable cutter (max 3 times)
Max feed speed 10 m/min.

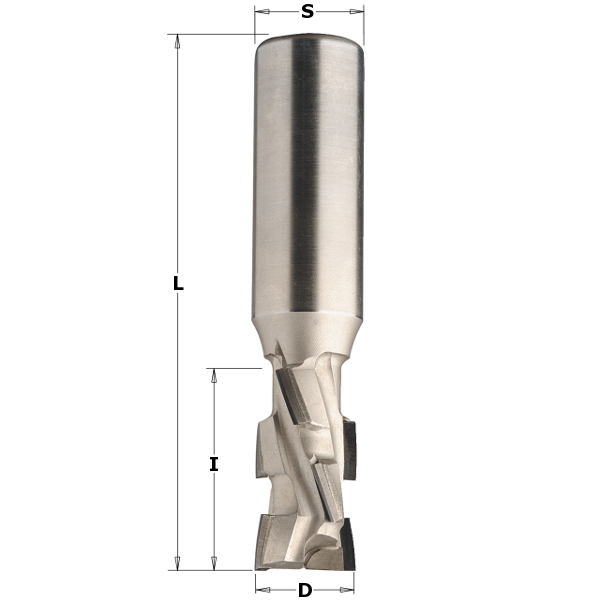

D	DX/SX	Z	Material	I	L	S	Code	Ava.	Price	Quantity
20 mm.	DX	2+2	DP	27 mm.	85 mm.	20x50 mm.	142.200.61		€ 157,95 VAT inc. € 191,12
20 mm.	DX	2+2	DP	36 mm.	95 mm.	20x50 mm.	142.201.61		€ 210,60 VAT inc. € 254,83
20 mm.	DX	2+2	DP	45 mm.	105 mm.	20x50 mm.	142.202.61		€ 263,25 VAT inc. € 318,53
20 mm.	DX	2+2	DP	54 mm.	115 mm.	20x50 mm.	142.203.61		€ 315,90 VAT inc. € 382,24
25 mm.	DX	2+2	DP	27 mm.	85 mm.	25x50 mm.	142.250.61		€ 157,95 VAT inc. € 191,12
25 mm.	DX	2+2	DP	36 mm.	95 mm.	25x50 mm.	142.251.61		€ 210,60 VAT inc. € 254,83
25 mm.	DX	2+2	DP	45 mm.	105 mm.	25x50 mm.	142.252.61		€ 263,25 VAT inc. € 318,53
25 mm.	DX	2+2	DP	54 mm.	115 mm.	25x50 mm.	142.253.61		€ 315,90 VAT inc. € 382,24
