Hinge boring bits

Hinge boring bits

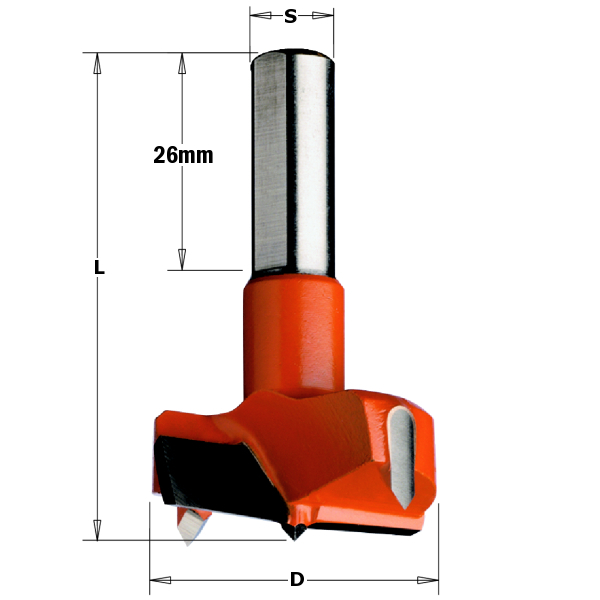

TECHNICAL DETAILS:

Super-strength steel.
Cutter portion coated with orange or black P.T.F.E.
HW head with precision balanced centre point.
2 HW precision ground cutting edges (Z2).
2 negatively ground spurs (V2).
Parallel shank with driving flat and length adjusting screw.

D	DX/SX	Material	L	S	Code	Price
14 mm.	DX	HW	57,5 mm.	10x26 mm.	317.140.11	€ 43,06 VAT inc. € 52,96
14 mm.	SX	HW	57,5 mm.	10x26 mm.	317.140.12	€ 43,06 VAT inc. € 52,96
15 mm.	DX	HW	57,5 mm.	10x26 mm.	317.150.11	€ 43,06 VAT inc. € 52,96
15 mm.	SX	HW	57,5 mm.	10x26 mm.	317.150.12	€ 43,06 VAT inc. € 52,96
16 mm.	DX	HW	57,5 mm.	10x26 mm.	317.160.11	€ 43,79 VAT inc. € 53,86
16 mm.	SX	HW	57,5 mm.	10x26 mm.	317.160.12	€ 43,79 VAT inc. € 53,86
17 mm.	DX	HW	57,5 mm.	10x26 mm.	317.170.11	€ 46,41 VAT inc. € 57,08
17 mm.	SX	HW	57,5 mm.	10x26 mm.	317.170.12	€ 46,41 VAT inc. € 57,08
18 mm.	DX	HW	57,5 mm.	10x26 mm.	317.180.11	€ 45,10 VAT inc. € 55,47
18 mm.	SX	HW	57,5 mm.	10x26 mm.	317.180.12	€ 45,10 VAT inc. € 55,47
19 mm.	DX	Hw	57,5 mm.	10x26 mm.	317.190.11	€ 45,10 VAT inc. € 55,47
19 mm.	SX	HW	57,5 mm.	10x26 mm.	317.190.12	€ 45,10 VAT inc. € 55,47
20 mm.	DX	HW	57,5 mm.	10x26 mm.	317.200.11	€ 45,10 VAT inc. € 55,47
20 mm.	SX	HW	57,5 mm.	10x26 mm.	317.200.12	€ 45,10 VAT inc. € 55,47
22 mm.	DX	HW	57,5 mm.	10x26 mm.	317.220.11	€ 50,77 VAT inc. € 62,45
22 mm.	SX	HW	57,5 mm.	10x26 mm.	317.220.12	€ 50,77 VAT inc. € 62,45
24 mm.	DX	HW	57,5 mm.	10x26 mm.	317.240.11	€ 53,83 VAT inc. € 66,21
24 mm.	SX	HW	57,5 mm.	10x26 mm.	317.240.12	€ 53,83 VAT inc. € 66,21
25 mm.	DX	HW	57,5 mm.	10x26 mm.	317.250.11	€ 51,21 VAT inc. € 62,98
25 mm.	SX	HW	57,5 mm.	10x26 mm.	317.250.12	€ 51,21 VAT inc. € 62,98
26 mm.	DX	HW	57,5 mm.	10x26 mm.	317.260.11	€ 51,21 VAT inc. € 62,98
26 mm.	SX	HW	57,5 mm.	10x26 mm.	317.260.12	€ 51,21 VAT inc. € 62,98
28 mm.	DX	HW	57,5 mm.	10x26 mm.	317.280.11	€ 56,30 VAT inc. € 69,25
28 mm.	SX	HW	57,5 mm.	10x26 mm.	317.280.12	€ 56,30 VAT inc. € 69,25
30 mm.	DX	HW	57,5 mm.	10x26 mm.	317.300.11	€ 54,55 VAT inc. € 67,10
30 mm.	SX	HW	57,5 mm.	10x26 mm.	317.300.12	€ 54,55 VAT inc. € 67,10
32 mm.	DX	HW	57,5 mm.	10x26 mm.	317.320.11	€ 60,08 VAT inc. € 73,90
32 mm.	SX	HW	57,5 mm.	10x26 mm.	317.320.12	€ 60,08 VAT inc. € 73,90
34 mm.	DX	HW	57,5 mm.	10x26 mm.	317.340.11	€ 60,08 VAT inc. € 73,90
34 mm.	SX	HW	57,5 mm.	10x26 mm.	317.340.12	€ 60,08 VAT inc. € 73,90
35 mm.	DX	HW	57,5 mm.	10x26 mm.	317.350.11	€ 55,14 VAT inc. € 67,82
35 mm.	SX	HW	57,5 mm.	10x26 mm.	317.350.12	€ 55,14 VAT inc. € 67,82
38 mm.	DX	HW	57,5 mm.	10x26 mm.	317.380.11	€ 68,81 VAT inc. € 84,64
38 mm.	SX	HW	57,5 mm.	10x26 mm.	317.380.12	€ 68,81 VAT inc. € 84,64
40 mm.	DX	HW	57,5 mm.	10x26 mm.	317.400.11	€ 66,19 VAT inc. € 81,42
40 mm.	SX	HW	57,5 mm.	10x26 mm.	317.400.12	€ 66,19 VAT inc. € 81,42
45 mm.	DX	HW	57,5 mm.	10x26 mm.	317.450.11	€ 80,01 VAT inc. € 98,41
45 mm.	SX	HW	57,5 mm.	10x26 mm.	317.450.12	€ 80,01 VAT inc. € 98,41
50 mm.	DX	HW	57,5 mm.	10x26 mm.	317.500.11	€ 84,38 VAT inc. € 103,78
50 mm.	SX	HW	57,5 mm.	10x26 mm.	317.500.12	€ 84,38 VAT inc. € 103,78
55 mm.	DX	HW	57,5 mm.	10x26 mm.	317.550.11	€ 88,74 VAT inc. € 109,15
55 mm.	SX	HW	57,5 mm.	10x26 mm.	317.550.12	€ 88,74 VAT inc. € 109,15
60 mm.	DX	HW	57,5 mm.	10x26 mm.	317.600.11	€ 91,21 VAT inc. € 112,19
60 mm.	SX	HW	57,5 mm.	10x26 mm.	317.600.12	€ 91,21 VAT inc. € 112,19
