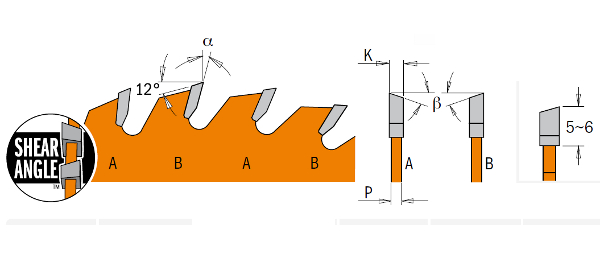

TECHNICAL DETAILS OF CARBIDE TEETH:
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
| D | K | F | Z | a | b | Material | Code | Ava. | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 136 mm. | 1,5 mm. | 20(+10) mm. | 18 | 20° ° | 10° ATB + 8° SHEAR | HW | 271.136.18H |
|
€ 12,74
VAT inc. € 15,68
|
|
| 150 mm. | 1,5 mm. | 20(+16) mm. | 24 | 18° ° | 10° ATB + 8° SHEAR | HW | 271.150.24H |
|
€ 14,80
VAT inc. € 18,20
|
|
| 160 mm. | 1,7 mm. | 20(+16) mm. | 24 | 18° ° | 10° ATB + 8° SHEAR | HW | 271.160.24H |
|
€ 16,20
VAT inc. € 19,92
|
|
| 165 mm. | 1,5 mm. | 20(+15,87) mm. | 24 | 18° ° | 10° ATB + 8° SHEAR | HW | 271.165.24H |
|
€ 16,20
VAT inc. € 19,92
|
|
| 184 mm. | 1,7 mm. | 30 mm. | 24 | 20° ° | 10° ATB + 8° Shear | HW | 271.184.24H |
|
€ 20,56
VAT inc. € 25,28
|
|
| 184 mm. | 1,7 mm. | 30 mm. | 24 | 20° ° | 10° ATB + 8° SHEAR | HW | 271.184.24M |
|
€ 20,15
VAT inc. € 24,78
|
|
| 190 mm. | 1,7 mm. | 30(+20+16) mm. | 24 | 20° ° | 10° ATB + 8° SHEAR | HW | 271.190.24M |
|
€ 20,56
VAT inc. € 25,28
|
|
| 200 mm. | 1,8 mm. | 30 mm. | 36 | 15° ° | 10° ATB + 8° SHEAR | HW | 271.200.36M |
|
€ 23,27
VAT inc. € 28,62
|
|
| 210 mm. | 1,8 mm. | 30(+25) mm. | 36 | 15° ° | 10° ATB + 8° SHEAR | HW | 271.210.36M |
|
€ 23,27
VAT inc. € 28,62
|
|
| 216 mm. | 1,8 mm. | 30 mm. | 36 | -5° Neg. ° | 10° ATB + 8° SHEAR | HW | 271.216.36M |
|
€ 23,27
VAT inc. € 28,62
|
|
| 235 mm. | 2,4 mm. | 30(+25) mm. | 36 | 18° ° | 10° ATB + 8° SHEAR | HW | 271.235.36M |
|
€ 27,22
VAT inc. € 33,48
|
|
| 250 mm. | 2,4 mm. | 30 mm. | 42 | 18° ° | 10° ATB + 8° SHEAR | HW | 271.250.42M |
|
€ 28,37
VAT inc. € 34,89
|
|
| 300 mm. | 2,6 mm. | 30 mm. | 48 | 18° ° | 10° ATB + 8° SHEAR | HW | 271.300.48M |
|
€ 37,00
VAT inc. € 45,51
|
