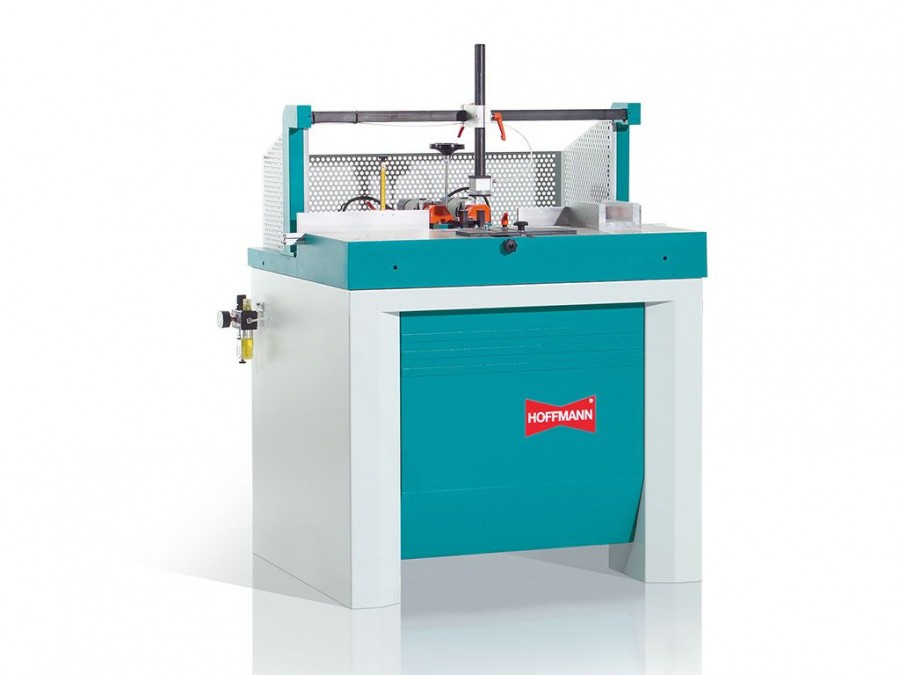

Pneumatic Dovetail Routing Machine.

Free-standing version with solid cast table and large working surface at a comfortable working height. With two routing units to produce two dovetail slots in sizes of W-1/2/3 and option W-4. Infinately adjustable router cross-centres from 32 mm to 100 mm.

Function

The semi-automatic machine cycle is actuated by pressing the foot-pedal. The positioned work-piece is clamped and the units router to the pre-set depth and then return to their home position. The work-piece is then released. The centre fence position and the routing depth are selected manually. The router cross-centres are positioned manually with the aid of a lead screw and digital counter.
