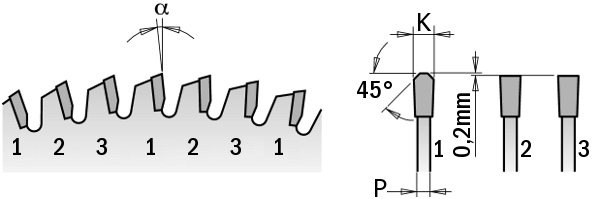

TECHNICAL DETAILS OF CARBIDE TEETH: -Teeth height mm: 8~10 -CHROMIUM ISO grade: KCR06 -Hardness (HV10): 1.950 -Transverse rupture strength (N/mm2): 2.300 Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
| D | K | F | Z | a | b | Material | Code | Ava. | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 250 mm. | 3,2 mm. | 30 mm. | 60 | -3º ° | FFT | HW | 281.061.10M |
|
€ 44,85
VAT inc. € 55,16
|
|
| 220 mm. | 3,2 mm. | 30 mm. | 63 | -3º ° | FFT | HW | 281.063.09M |
|
€ 44,29
VAT inc. € 54,48
|
|
| 300 mm. | 3,2 mm. | 30 mm. | 72 | -3º ° | FFT | HW | 281.073.12M |
|
€ 53,09
VAT inc. € 65,30
|
|
| 250 mm. | 3,2 mm. | 30 mm. | 81 | -3º ° | FFT | HW | 281.081.10M |
|
€ 56,89
VAT inc. € 69,98
|
|
| 300 mm. | 3,2 mm. | 30 mm. | 96 | -3º ° | FFT | HW | 281.097.12M |
|
€ 67,35
VAT inc. € 82,84
|
