CMT-Enlock joining system

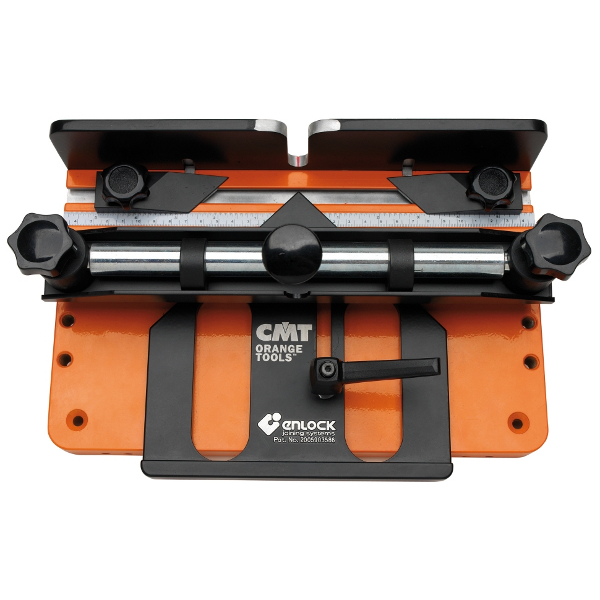

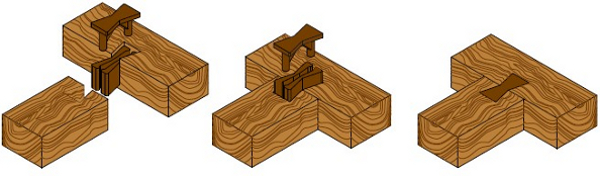

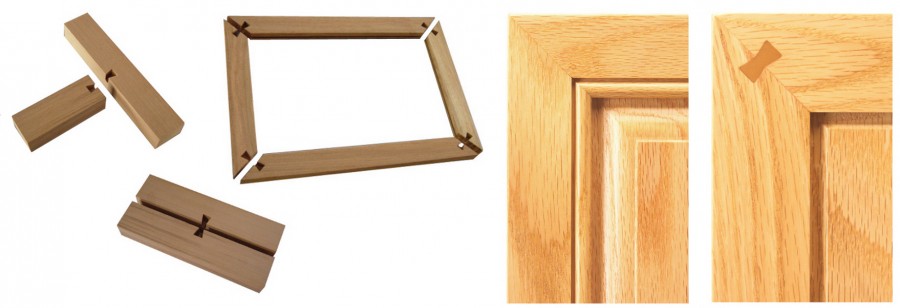

Patent No. AU2005/903586 PCT/AU2006/000957 The innovative CMT-Enlock joining system is designed to build the strongest ?T?, ?mitre? joints and ?edge-to-edge? assemblies using the patented E15 and E10 dovetail keys. The dovetail slots in each part to be joined are machined quickly and accurately using the CMT Enlock jig. Simply clamp your workpiece in the jig, set the bit depth and you are ready to rout. The jig features strong cast aluminium construction throughout the body, top plate, stops and clamping bar to produce perfect strong joints for life! Width range: 30~75mm (1-3/16" ~ 2-61/64"). Thickness range: 19~35mm (3/4" ~ 1-3/8"). STANDARD EQUIPMENT: -Joining system CMT-Enlock1. -50 key masterpack CMT-Enlock10. -9,5mm (3/8") HWM dovetail bit (North American Market). -instruction manual (in five languages). PATENTED SYSTEM The CMT-Enlock dovetail key expands when the cap is forced in. This widens the dovetail producing a strong clamping force across the joint. No other dovetail system on the market produces this clamping force.

Material Descr. DIM S Code Ava. Price Quantity

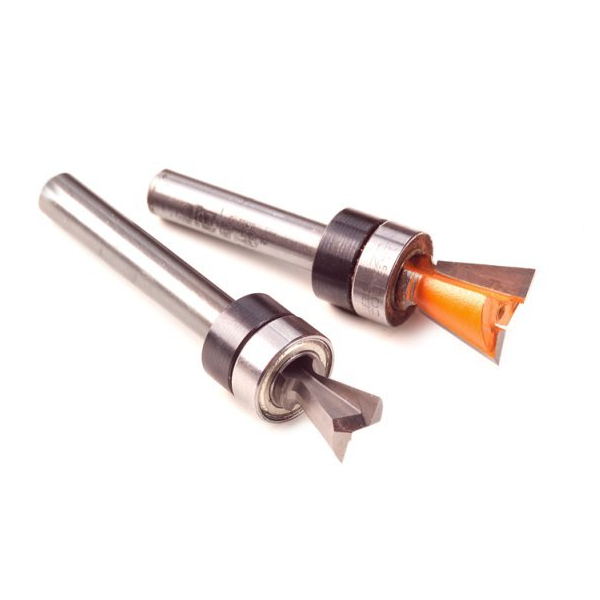

HWM  Ø9,5mm Dovetail Bit (Ø6mm Shank)  D=9.5x9.5x60.3 C/CUSC  6 mm. 718.098.11B product available
€ 20,09
VAT inc. € 24,70
HWM  Fresa per unione a coda di rondine HWM  D=12.7x12.7x52.5 C/CUSC  6 mm. 718.127.11B product available
€ 18,40
VAT inc. € 22,63
HWM  Ø9,5mm Dovetail Bit (Ø6,35mm Shank)  D=9.52x9.5x60.3 C/CUSC  6,35 mm. 818.098.11B product available
€ 20,09
VAT inc. € 24,70
HWM  Ø12,7mm Dovetail Bit (Ø6,35mm Shank)  D=12.7x12.7x52.4 C/CUSC  12,7 mm. 818.128.11B product available
€ 18,40
VAT inc. € 22,63
  Complete Joining System    0 mm. CMT-ENLOCK1 product available
€ 177,45
VAT inc. € 218,26
  Ø9,5mm 50 Key Masterpack  9,5  0 mm. CMT-ENLOCK10 product available
€ 9,10
VAT inc. € 11,19
  Ø12,7mm 50 Key Masterpack  12,7  0 mm. CMT-ENLOCK15 product available
€ 11,05
VAT inc. € 13,59

Spare parts

Product
718.098.11B 541.001.00 - - -
718.127.11B 541.001.00 - - -
818.098.11B 541.001.00 - - -
818.128.11B 541.001.00 - - -
CMT-ENLOCK1 - 818.098.11B CMT-ENLOCK10 CMT-ENLOCK15
